Match! is an easy-to-use software for phase identification from powder diffraction data. It compares the diffraction pattern of your sample to a database containing reference patterns in order to identify the phases which are present. Additional knowledge about the sample like known phases, elements or density can be applied easily.
In addition to this qualitative analysis, a quantitative analysis (using Rietveld refinement) can be performed as well. You can easily setup and run Rietveld refinements from within Match!, with the actual calculations being performed automatically, using the well-known program FullProf (by J. Rodriguez-Carvajal) in the background. Match! provides a gentle introduction into Rietveld refinement, from fully automatic operation to the "Expert" mode. The software runs natively on Windows, macOS and Linux.

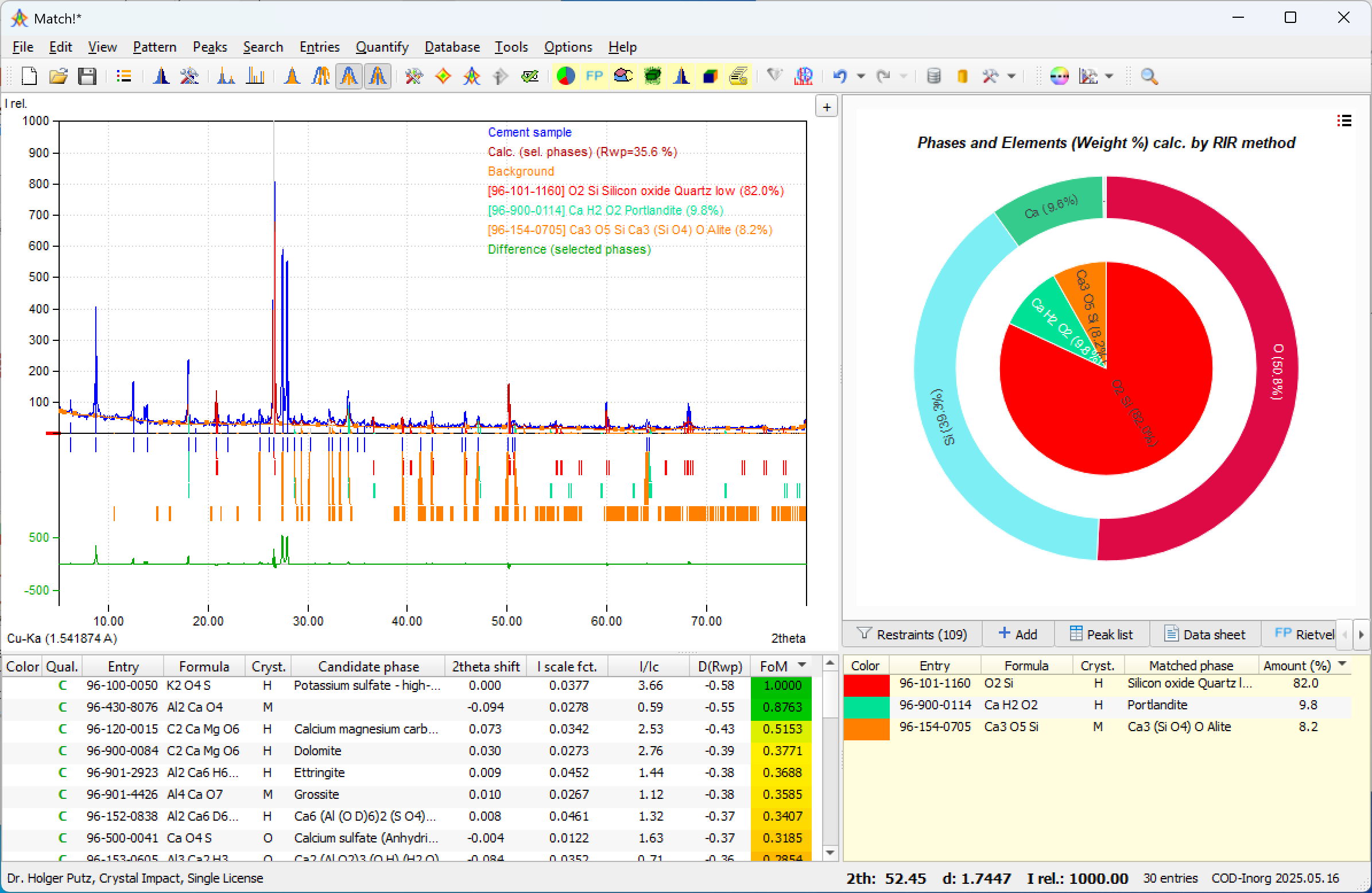

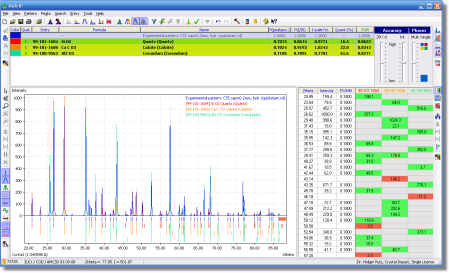

Screen shot of version 3. Click to enlarge.

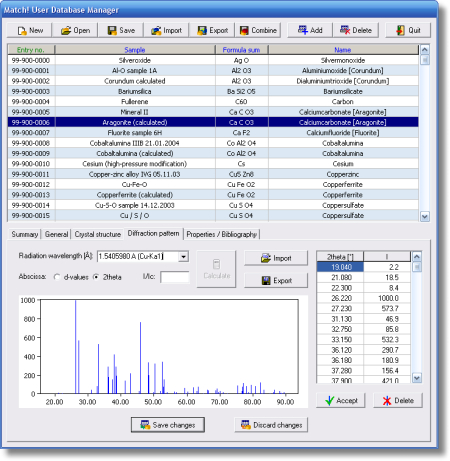

As reference database, you can apply the included free-of-charge COD database and/or ICSD/Retrieve (if you have a valid licence), use any ICDD PDF product, and/or create a user database based on your own diffraction patterns. The user database patterns can be edited manually, imported from peak files, calculated from crystal structure data (e.g. CIF files), or imported from your colleague's user database.
A list of Match!'s most prominent features can be found here.

Demonstration Version

If you are interested in evaluating Match!, you can download a time-limited demonstration version free-of-charge.


A product brochure including feature list, system requirements and prices is available for download.

Match! News

June 18, 2018
A new Match! version 3.6.2 has just become available. More...

February 2, 2018
Another new Match! tutorial video is about crystal structure solution using Match! in combination with Treor, Endeavour and Diamond.

January 18, 2018
A new Match! tutorial video demonstrates the unit cell determination (indexing), with the well-known indexing programs Treor and Dicvol in the background.

January 2, 2018
A new release of the COD reference database (now containing more than 387,000 entries!) has become available for download from here.

January 19, 2016
In the new maintenance release 1.11j for Match! version 1, some minor bugs have been fixed. More...

January 15, 2016
A maintenance release 2.4.7 for Match! version 2 has just become available. More...

January 2, 2014
The Match! tutorial videos are now also available for online viewing using QuickTime as well as for download.

November 21, 2013
A tutorial in Spanish language for Match! 2 has just become available.

September 23, 2013
Today we celebrate the 10th anniversary of Match! with a new tutorial video and a discount for updates.
